Breathe Easy
Leo Düo Gen2 is HERE!
Wifi enabled with data stroage
1. Respiration Rate
2. Volume
3. PEEP
4. APNEA event triggered
5. FiO2 & SiO2
Award winning design team:
The Leo Düo was designed in concert with Haply Robotics, a Canadian technology company, winner of CODE LiFE Ventilator Challenge.
The Montreal General Hospital Foundation and the Research Institute of the McGill University Health Center (RI-MUHC), in partnership with the McGill Faculty of Engineering, launched the CODE LiFE Ventilator Challenge in March 2020 in response to the global shortage ventilator, and the need for a better life-saving device at a fraction of the cost of other devices.
The challenge was a two-week sprint to design a low-cost, easy-to-use ventilator to support patients suffering from respiratory distress. More than 2,600 registrations represented over 1,000 teams from 94 countries.
“The Haply design was selected on the balance of ease of use as well as unit cost, 10-20% of any comparable device. In addition, the judges were impressed by the versatility and robustness of the design.”
Leo Düo conforms to –
ISO 80601-2-69, ISO 80601-2-79,
IEC 60601-1-6, IEC 60601-1-11,
IEC 60601-1-1
- FDA for manufacturing factory site
- FDA for Leo Düo device
Voluntary Modes
BPAP Mode
The device supports pressure-controlled modes of ventilation. Pressure support ventilation is the primary mode (PSV) with spontaneous breathing (S mode). The operator controls include pressure sensitivity of the triggered breath, inspiratory pressure (IPAP), end expiratory pressure (PEEP). In S/T mode the device will switch to pressure-controlled ventilation when apnea mode is triggered. Along with the controls available in the S mode, additional controls include apnea time (15 seconds or user adjustable from 0-40 seconds) and inspiratory time.
Oxygen concentration mode
Oxygen flow rate / volume provided to the patient. 95% pure oxygen at 5/LPM
BPAP with oxygen concentrator enabled or disabled
Ventilation functions with the addition of self generated oxygen system
Revolutionary 2-in-1 Device
AUTO BPAP with built-in oxygen supply !
AN AWARD WINNING CANADIAN DESIGN
Buy direct or SETUP PRODUCTION NEAR YOU AND SAVE LIVES.
LOCATION
leo dÜo medical respiratory device availability is expanding as new countries and facilities come online
NORTH AMERICA
Sales and Marketing
Engineering
NORTH AFRICA
Regional Project Direct Supply
Engineering & Manufacturing
Customer Support
HONG KONG / CHINA
Product Engineering & Manufacturing
Finance & Administration
SOUTHEAST ASIA
Regional Project Direct Supply
Thailand Operations
Customer Support
For More Information
Product Photos
Deliver Support to Patients Where it Matters
Hospital & Home

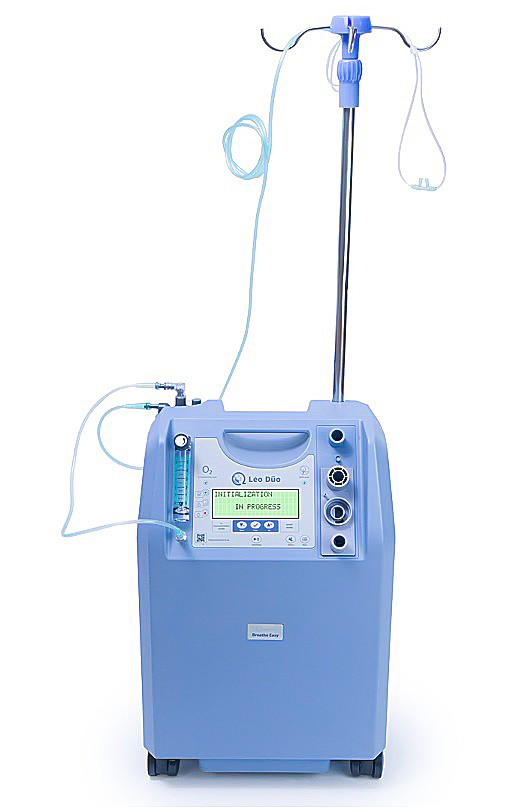

Leo Düo
LS-D500
- Patient-triggered breathing with apnea support
- Patent-pending oxygen cycled system to preserve vital 02 supply
- Ultra-quiet operation for use in hospitals & homes
- Supports high oxygen flow up to 5LPM of 90% oxygen
- Redundant sensing & system warnings to ensure patient safety
- Accurately monitors levels of oxygen, air flow, & pressure in real-time
- Long-lasting oxygen concentration technology
- Real-time system diagnostics for the care provider
Designed to comply with ISO 80601-2-69 and ISO 80601-2-79
For use with patients with respiratory impairment and insufficiency.*
Rapid Front Line Respiratory Care
Specifications

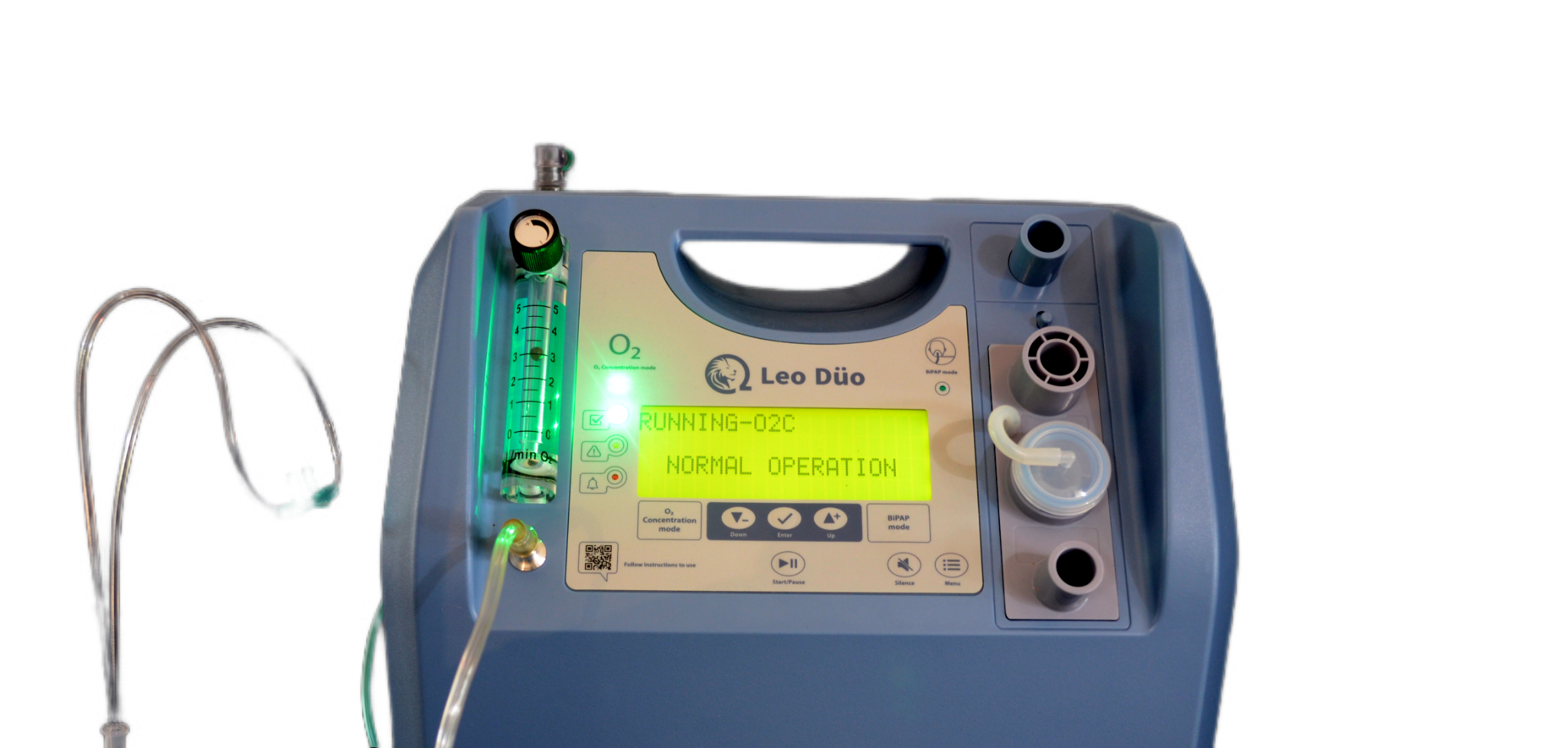

O2C Mode
| Flow Rate: | 0.5 – 5 LPM |
| Oxygen Purity: | ≥90% (the oxygen purity decreases with use) |

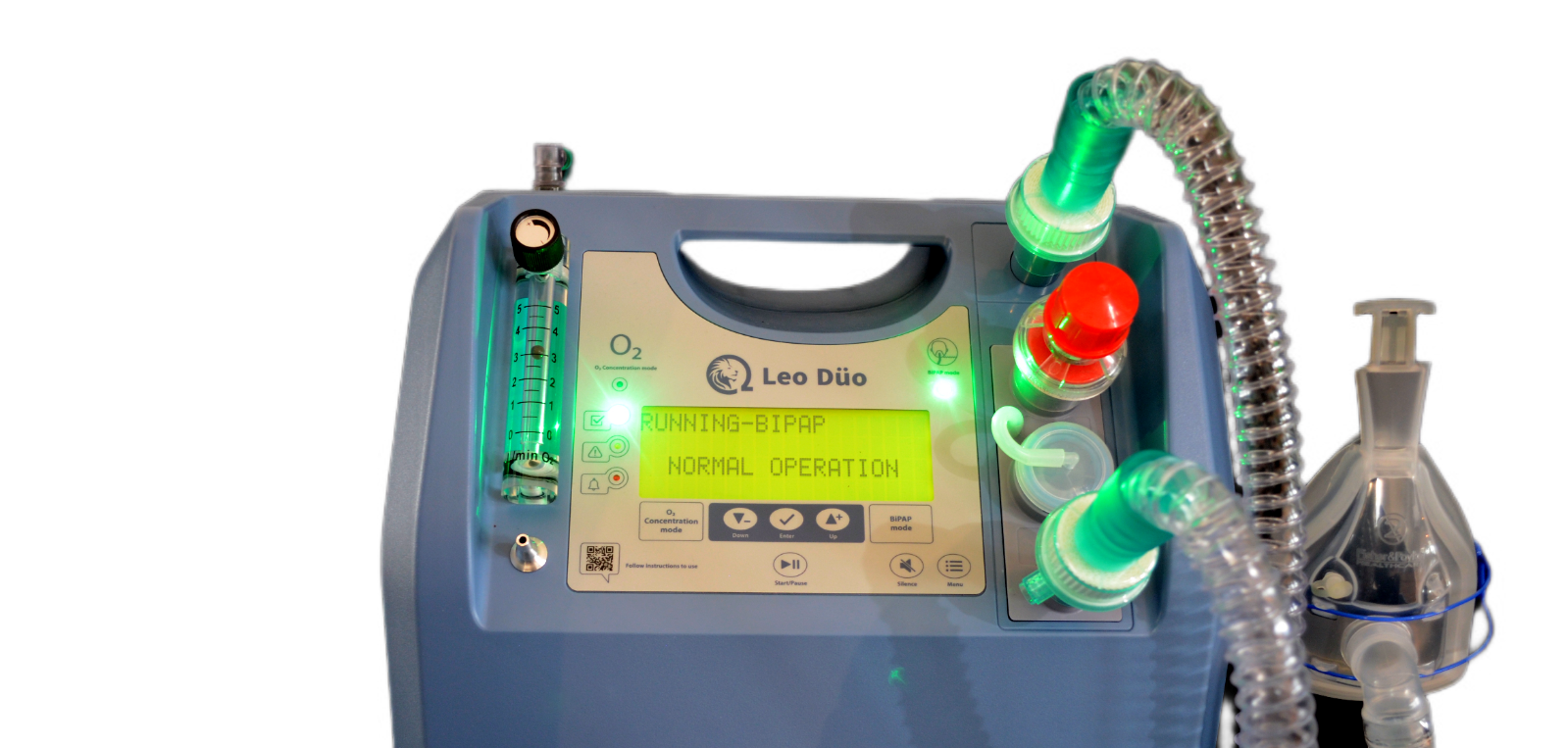

BPAP Mode
| Volume: | Inspiratory and minute volume display |
| IPAP: | 5 to 25 cmH20 |
| *EPAP: | 0 to 16 cmH20 |
| Breathing Rate: | 0 to 30 breaths per minute |
| Inspiratory Sensitivity: | -1 to -5 cmH2O |
| Rise Time: | 0.2 seconds |
| Apnea Time: | 20 seconds |
| Fi02: | 21 to 85% |
General
| Volume: | Inspiratory and minute volume display |
| Voltage: | AC110V ± 10v /AC230V±1 Ov |
| Frequency: | 60Hz ± 1Hz / 50Hz ± 1Hz |
| Sound Level: | ≤50db |
| Power: | 420VA |
| New Weight: | 16kg |
| Product Size: | L370 x W265 x H550mm |
| Warranty: | 2 years / 10,000 hours |
USE AS AN OXYGEN SUPPLY, BREATHING SUPPORT, OR BOTH.
No Need for a Large & Expensive External Oxygen Reservoir
ACCESSORIES
Every unit is supplied with the following accessories:
Additional accessories can also be purchased.

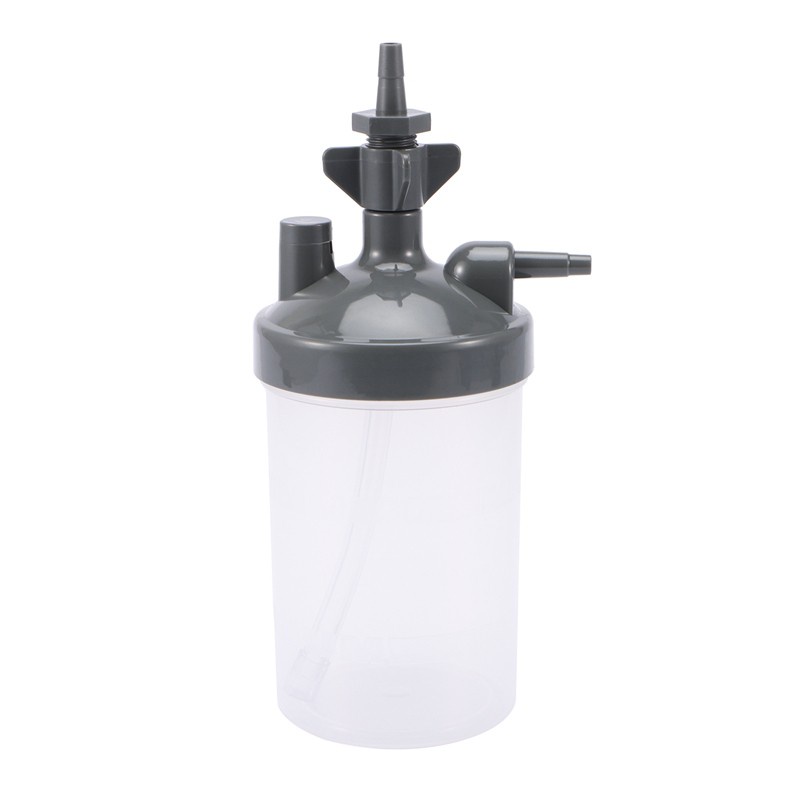

Humidifier Bottle
LS-A001-0

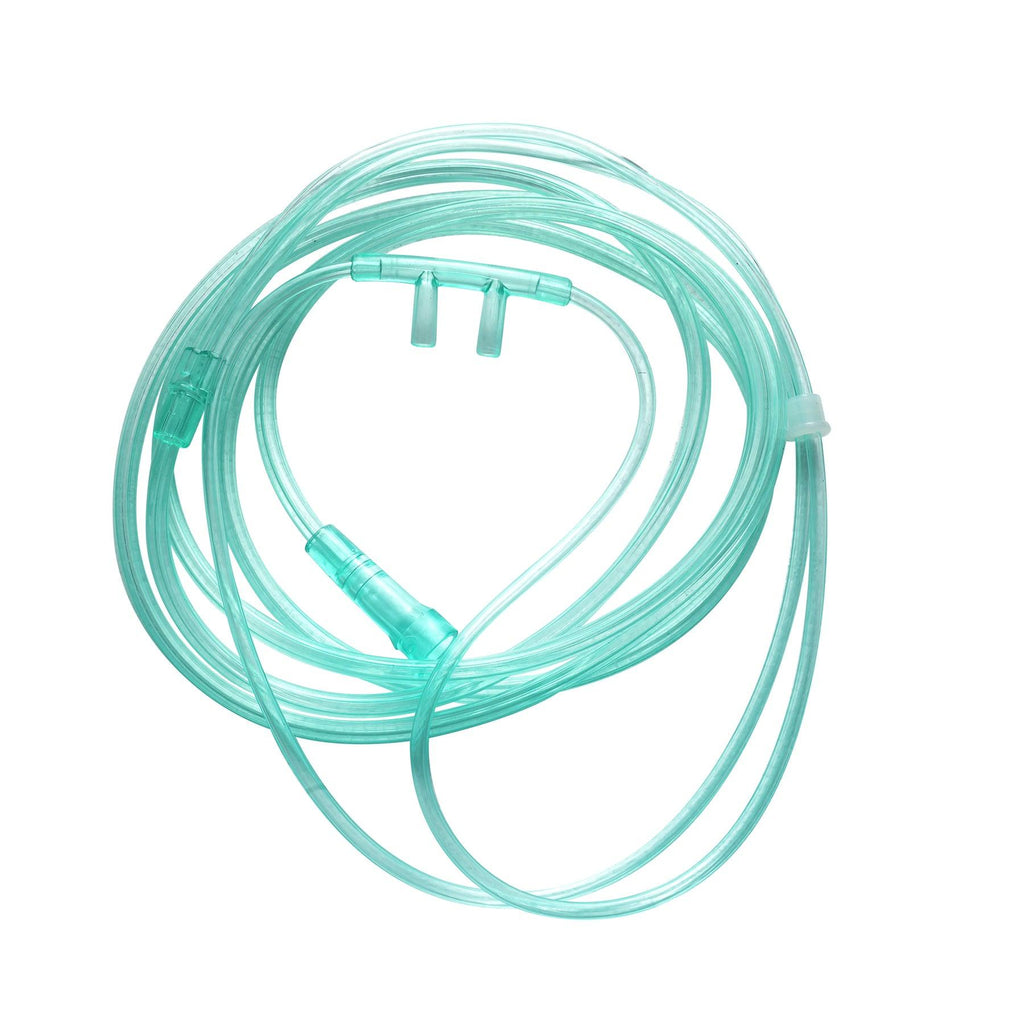

Nasal Cannula
LS-A002-0
HEPA Filter (pre-installed)
LS-A003-0

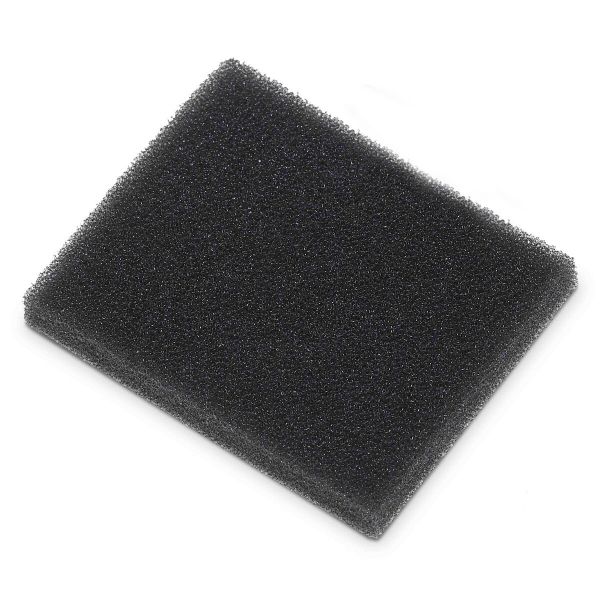

Cabinet Air Filter (pre-installed)
LS-A004-0
Oximeter
LS-A005-0

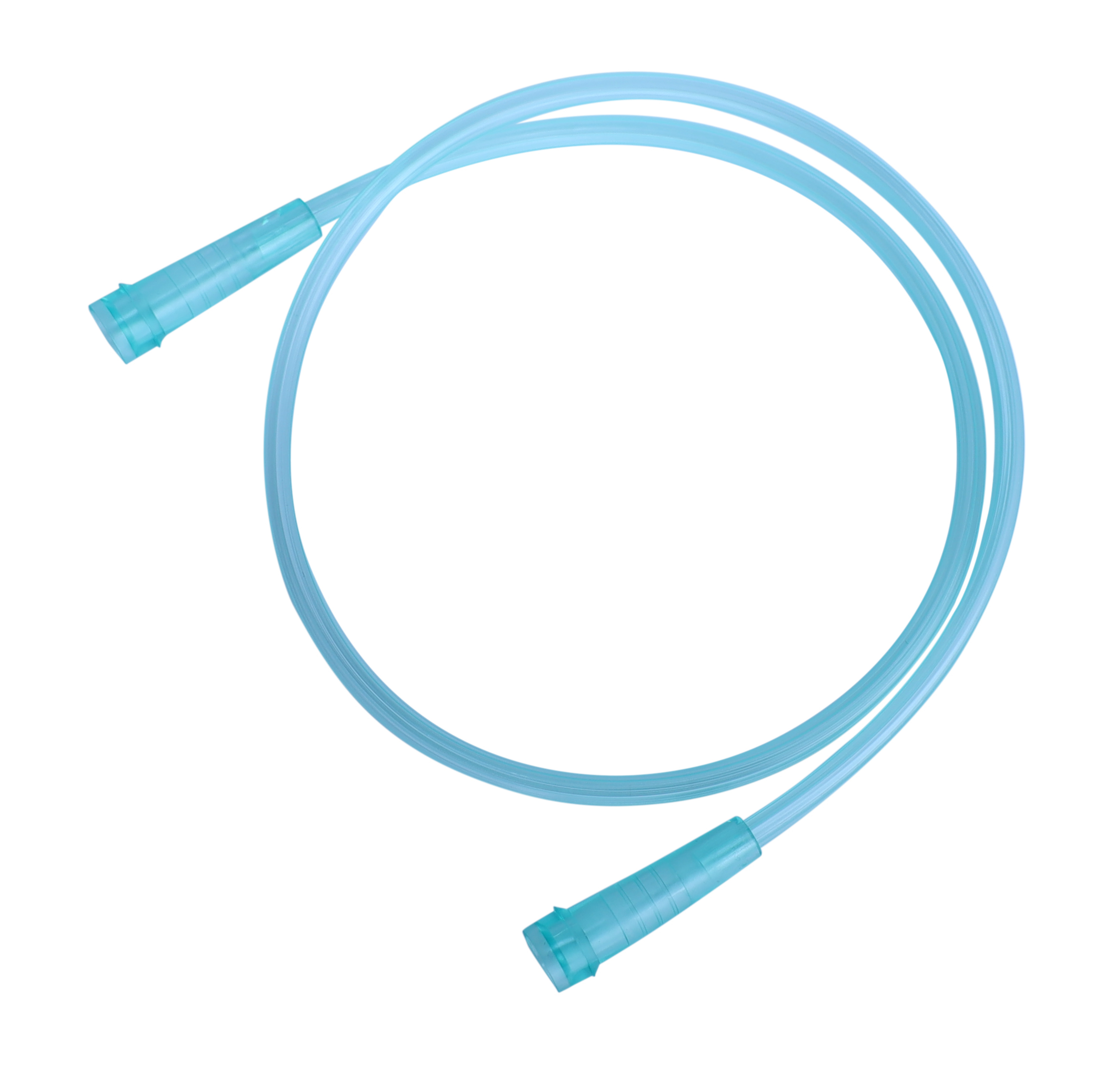

Bottle Cannula
LS-A006-0

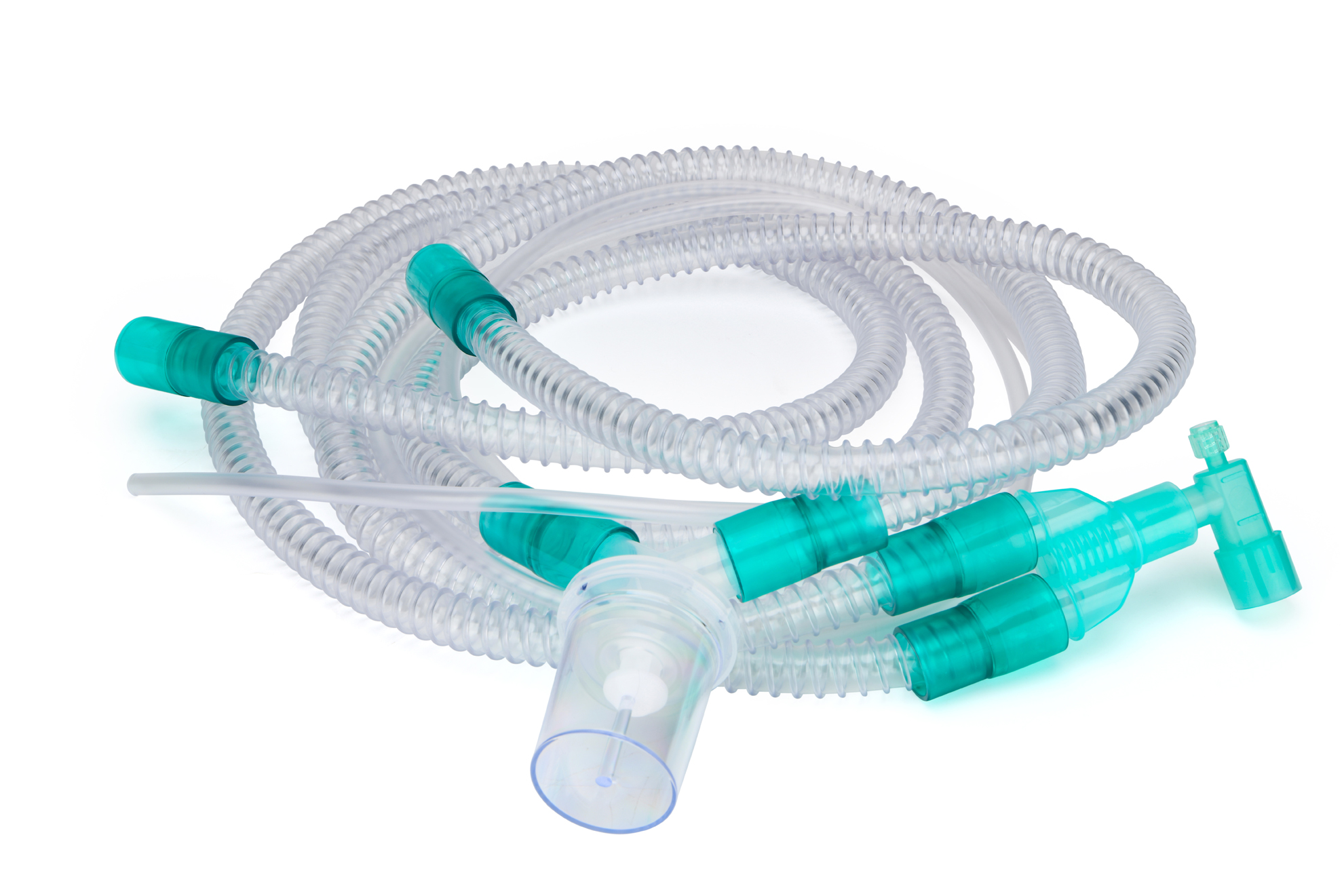

Breathing Circuit
LS-AD001-0
PEEP Valve
LS-AD002-0
Viral / HME Filter
LS-AD003-0
Exhalation Valve
LS-AD004-0

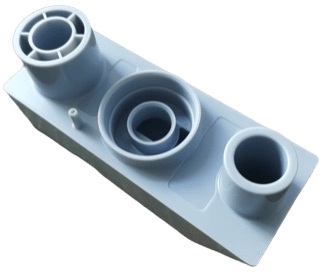

Ex-Bloc
LS-AD005-0

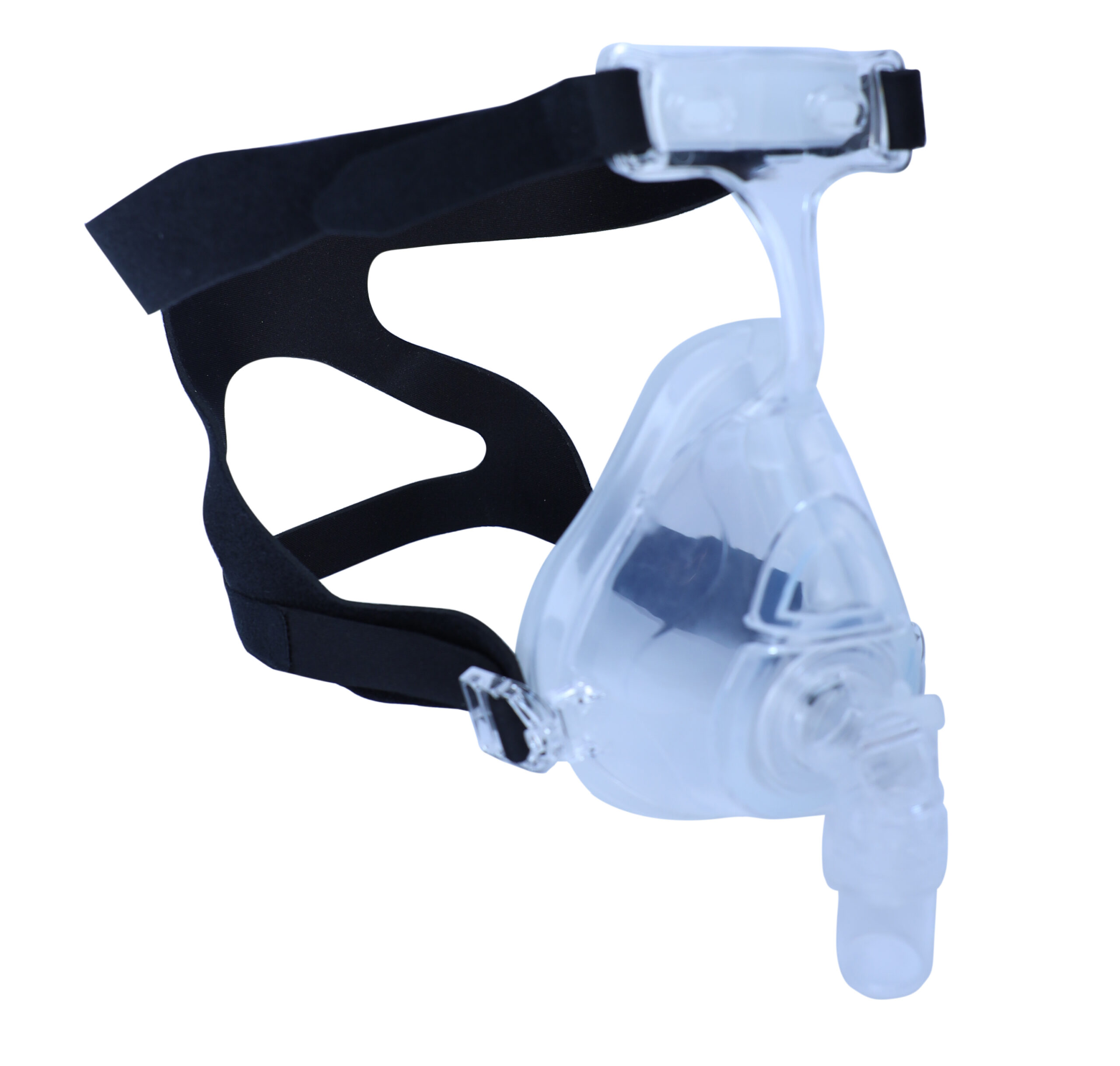

Mask
LS-AD006-0
Accessory Stand
LS-AD007-0

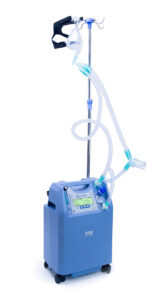

Leo Düo set up
